Mavi – OVERHEAD SECTIONAL DOOR MAX SIZE W5000 X H5000mm
Overhead Sectional door, also known as ”Industrial sectional door”, suitable for exterior and interior doors of a variety of buildings. The 40mm thick high-density polyurethane foam door panel has both thermal insulation and impact resistance. It forms a complete operating system through button spring tension balance, pulley rail sliding, and frequency conversion intelligent control system electric control.
- FEATURE
Aesthetic Excellence – sectional doors apply premium materials and advanced manufacturing techniques to deliver both durability and visual appeal. The good surface treatment provides exceptional corrosion resistance, scratch resistance, and ease of cleaning. The elegant design enhances the aesthetic appeal of your industrial facility, creating a professional and polished look.
Low Noise Operation – designed for seamless and quiet operation, our sectional doors are with knob spring tension balance, ensures smooth and stable door movement. The pulley slide system reduces friction and noise during operation. Frequency conversion intelligent control system maintains a consistent, low-noise environment, ideal for noise-sensitive applications.
Thermal Insulation – double-layer color steel plates are filled with polyurethane foam for superior heat retention. EPDM rubber strips can effectively seal the door, preventing external temperature fluctuations from affecting the interior environment. Meanwhile, the doors can reduce energy costs by maintaining a stable indoor climate, essential for comfortable working conditions.
Specifications
| Door Dimensions | W5000mm x H5000mm or customized |
| Opening Speed | 0.1~0.4 m/s, adjustable |
| Closing Speed | 0.1~0.4 m/s, adjustable |
| Emergency Opening | Chain |
| Frame/Cover | Galvanized steel |
| Door Panels | 40/50mm, filled with polyurethane foam, anti-pinch, strong and durable, thermal insulation and sound insulation, strong industrial aesthetics. |
| Panels Color | grey/white/customzied |
| Input Voltage | 1 Phase, 220V±10%, 50/60HZ |
| Motor | 450W ~ 1500W |
| Shaft Diameter | 25.4mm / 32mm optional |
| Controller | Servo controller with LCD display in English Powder coated steel / 304 Stainless Steel |
| Safety Device | Airbags and Infrared Sensors; Torsion Spring Anti-Breakage Device |
| Bottom Structure | Soft edge with wire safety edge |
| Track Seal | Rubber |
| Maximum Turnover | 20~30 cycles /day |
| Operating Life | 500,000 cycles |

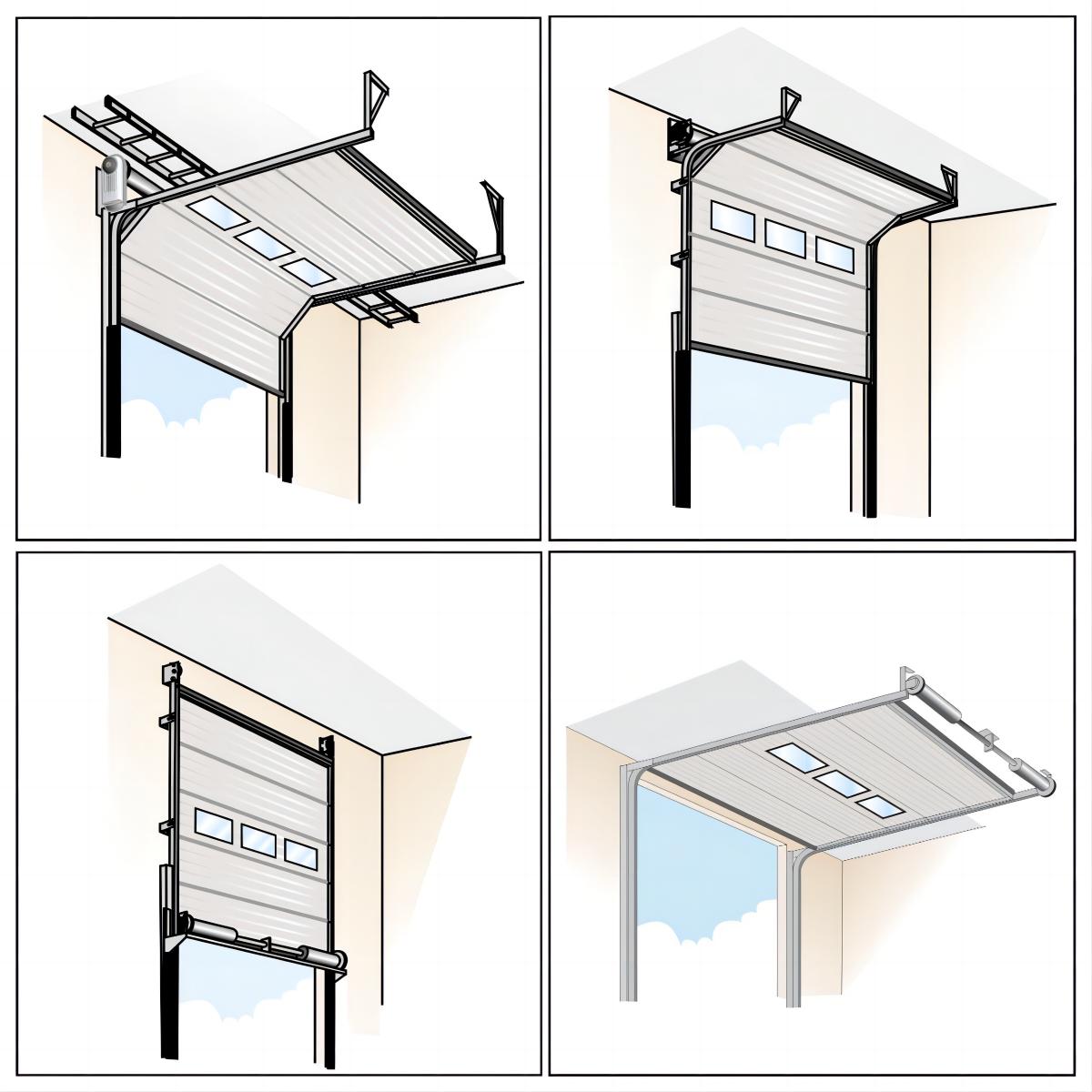

Multiple Opening Methods for Overhead Sectional Doors
Sectional door can be customized according to the factory environment. It is widely used for its space-saving features, high practicality and high-end appearance.
Installation Instructions

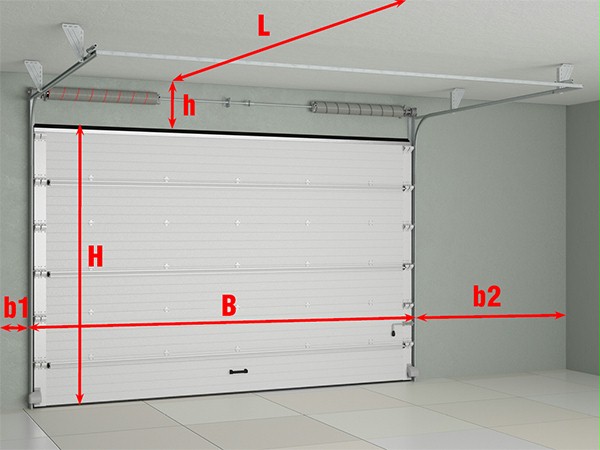

All measurements are made indoors and each value must be measured at three points at least: H – the height of the door opening (the distance from the ground to the top of the door opening) B – the width of the door opening (the distance from the left edge of the door opening to the right edge) h – at least 500 mm above the door opening (the distance from the top of the door opening to the ceiling) b1/b2 – requires a lateral distance of at least 150 mm left and right (distance from the corresponding edge of the door opening to the obstacle)
L is the depth of the room
When measuring H and B, take the maximum value as the final size
When measuring h, b1, b2 and L, take the smallest value as the final size
